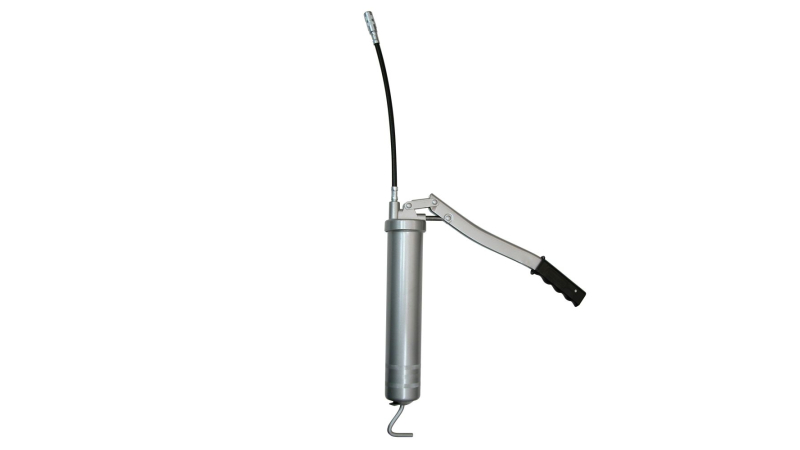

Pompa gresare manuala Pressol 12710 argintiu , pentru cartus de 400g , M 10 x 1-PZ-MU-SBV
Pompa gresare manuala Pressol argintiu , pentru cartus de 400g
-pompa gresare standard
-furntun de gresare este intarit
-manerul este prevazut cu maner cauciucat pentru o prindere mai buna
-temperatura de lucru este cuprinsa intre 2 si 20 de grade Celsius
Technical data
Grease gun connection, pressure-side: M 10 x 1
Capacitate (cm³): 500
Optiuni de reumplere: Cartus vaselina 400 g , DIN 1284, sau vaselina la vrac
Diametru pistonului de vaselina (mm): 8
Actionarea pistonului de vaselina: manual
Delivery rate/stroke (cm³): 1,2, at a counter-pressure of 400 bar
Discharge pressure up to (bar): 400
Burst pressure system (bar): 850
Burst pressure grease gun head (bar): 1200
Operation of plunger rod: with L-design handle
Sealing cover: loose
Wall thickness of grease gun tube (mm): 1,0
Lacquering: silver
Weight (kg): 1,28
Specification
● High pressure hose, M 10 x 1 male, 11 x 300 mm, with 4-claws-coupler, M 10 x 1
female (12 655 810)
● SB-package (SBV):
● Polybag, with headcard, for hanging display
● With EAN bar code
Special notes
● Operates with greases up to NLGI grade 2 at 20°C
● plunger with exactly fitting when using bulk grease or cartridge
● acc. to DIN 1283
● TÜV - certified
● Pump piston with high accuracy of fit to the cylinder (no dummy apparent lubrication)
● Performance unchanged after 40.000 actuating cycles
● Grease gun head, zinc die casting Z 410
● Sure grip handling due to deep band knurls
● Safe handle on the plunger rod
● Slip resistant handle on grease gun lever
● Plunger rod clamp on end cap enables manual pressure to be applied to spring to
compress bulk grease, or to force in the plunger in damaged cartridges.
● Low effort required for lubrication due to optimum lever efficiency
● High-speed ventilation, by half a rotation of the grease gun tube

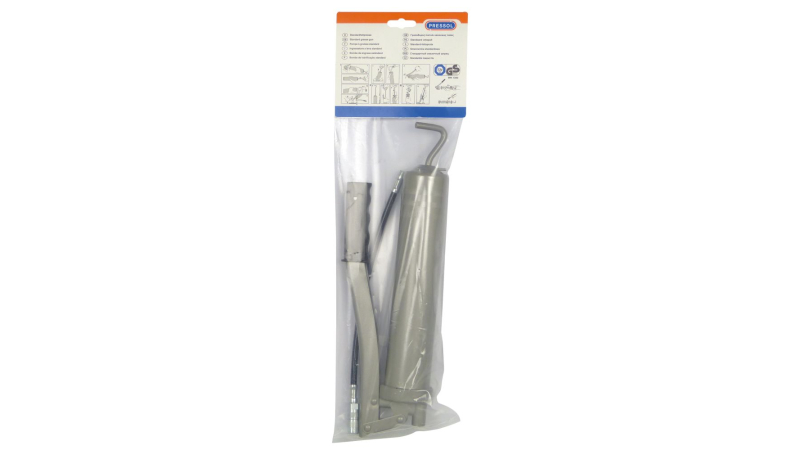

Packaging
Dimensions LxWxH (mm): 400 x 265 x 135
Weight including package (kg): 6,6
Packing unit: 5.0
